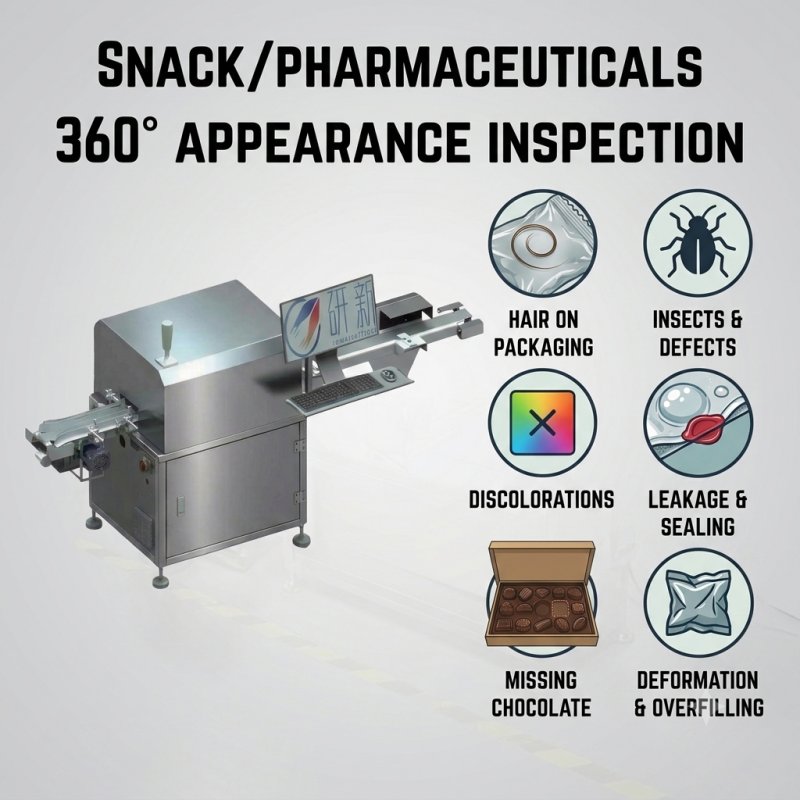

Automated packaging defect inspection system
Foreign Matter | Food foreign matter inspection Packaging contaminant detection Hair insect fiber dust detection for food package Low-density foreign object inspection machine |
| Surface Flaws | Packaging surface flaw detection Package black spot oil stain inspection Discoloration & uneven coating quality check |
| Sealing Failures | Package sealing defect detection Heat seal inspection machine Trapped materials in seal inspection Packaging micro-leakage detection wrinkled seal visual inspection |
| Missing & Empty | Missing product inspection in blister pack Underfilled package detection Blister empty slot checking Biscuit chocolate counting inspection |
| Deformation | Deformed pouch & bloated bag inspection Crushed box misaligned label detection Packaging shape defect visual check |
Top-selling market
Food processing packaging quality inspection Automated visual inspection for food packaging Bakery chocolate packaging defect detection Pouch quality control system Blister packaging online inspection |
| |||
Serial Number | project | illustrate | Remark |
1 | Detection method | Online testing | |
2 | operating system | Research and Development VS | |
3 | Equipment Model | YX- QX107 | |
4 | Image precision | 1mm | |
5 | Power supply and temperature | AC220V; 0~40℃; | |
6 | Product Type | food | |
7 | Detecting beats | 150 pieces /minute | |
8 | Technical Support | Remote debugging/surfaces flaws/sealing failures/missing&empty/deformation | |
9 | Elimination type | Surface foreign matter | |
10 | Equipment size | Determined based on specific circumstances | |
Configration
Sub-items | Project Name | brand | quantity | unit | |
1 | Visual inspection | Industrial camera + cable | Hikvision 5mega pixels | 2 | PCS |
2 | High-precision lens | Hikvision 5 mega pixels | 2 | PCS | |
3 | Visual light source + controller | Constant light source | 2 | PCS | |
4 | Detection software | Newvin | 1 | PCS | |
5 | monitor | 16-inch touchscreen | 1 | PCS | |
6 | Industrial PC (Upgraded Version) | i7 generation | 1 | PCS | |
7 | Mechanical control system | Visual motion control system | Newvin | 1 | PCS |
8 | Exclusion Agency | Cylinder rejection | 1 | PCS | |
9 | Terminal controller | food grade | 1 | PCS | |
10 | Dual-channel belt conveyor | food grade | 1 | PCS | |
11 | Other cables and accessories | Ming Wei | several | PCS | |
12 | photoelectric sensor | KEYENCE | 2 | PCS | |
13 | motor | In-depth study | 1 | PCS |
*The parameters of the standard machine are for reference only, and the configuration will be adjusted according to the functional requirements of the customer's production line.
