Product Overview:
The integra-print Non-Disruptive Over-the-Line Vision Inspection Machine represents the ultimate solution for manufacturers seeking to upgrade their factory quality control without the headaches of extended downtime or costly conveyor modifications.

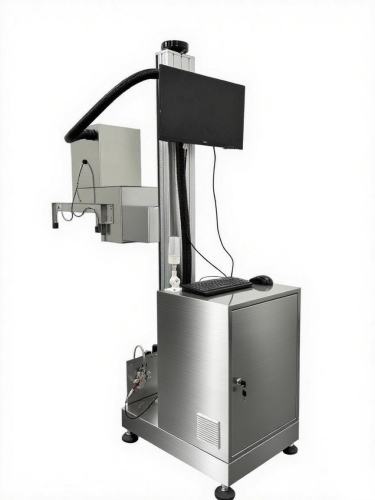

Engineered with a unique bridge-mount/straddle-frame mechanical architecture, this industrial inspection tower simply rolls or bolts directly over your existing packaging, wrapping, or filling conveyors. There is zero need to cut or modify your current production line setup. Once clamped, the integrated machine vision camera works seamlessly with your current sensors to provide continuous, high-speed inline analysis.

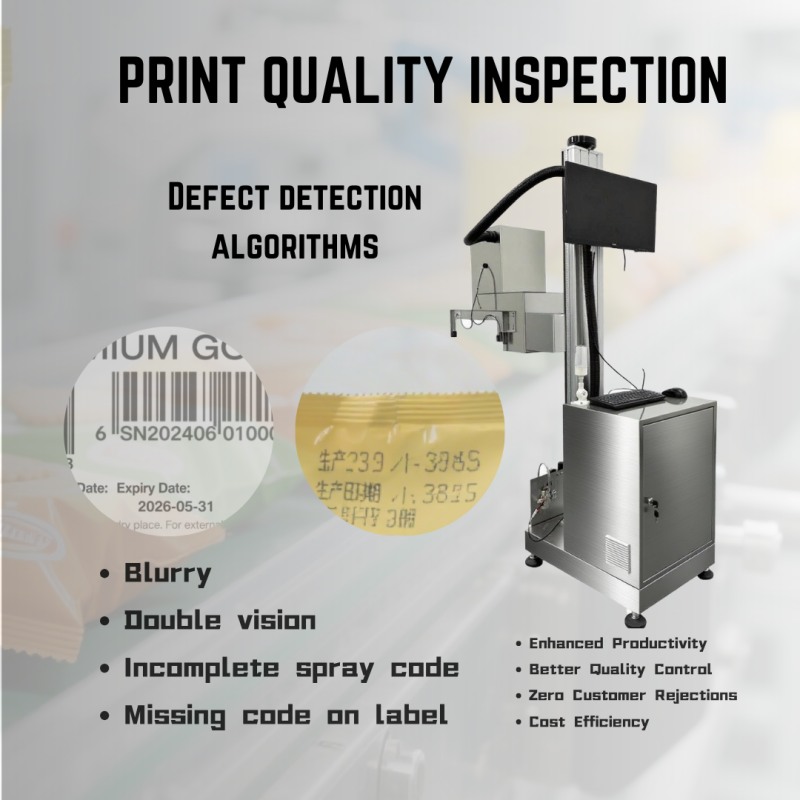

Industrial inkjet print quality vision inspection system demonstrating defect detection algorithms for blurry print, double vision ghosting, incomplete spray code, and missing code on product labels.

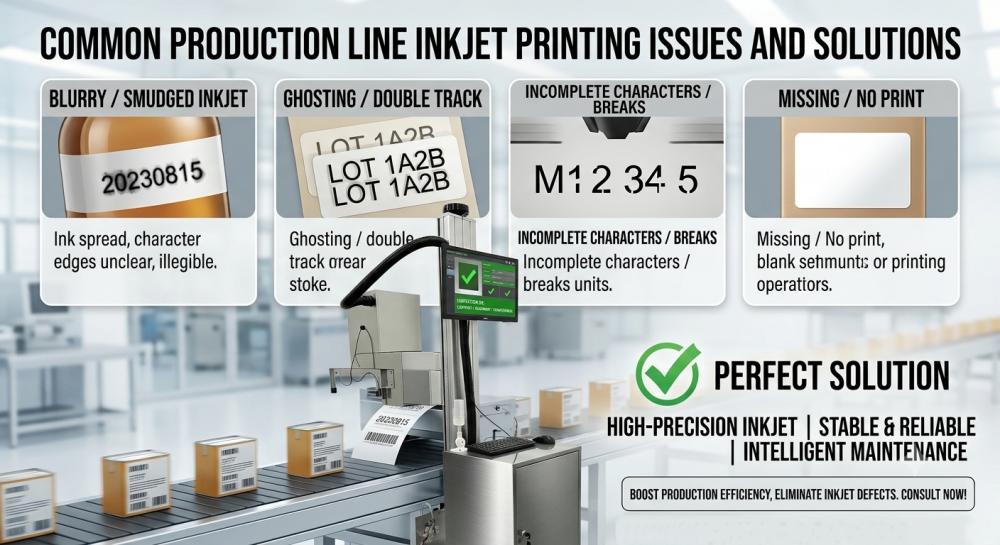

Core Inspection Capabilities (Defect Detection Algorithms)

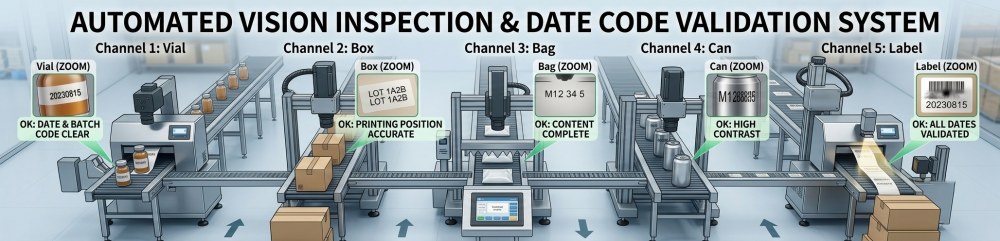

Equipped with advanced smart camera technology and deep learning vision algorithms, the system instantly identifies and rejects defective character strings on various substrates (vials, boxes, bags, cans, and labels):
Blurry & Smudged Print: Identifies low-contrast character prints caused by clogged printheads or moving vibrations.
Double Vision / Ghosting: Catches alignment shifts where ink double-strikes the packaging material.
Incomplete Spray Code: Detects broken lines or missing specific characters within date structures.
Missing Code on Label: Flags packages that entirely missed the inkjet or laser marking process.
Serial number | project | illustrate | Remark |
1 | Installation method | Online detection | |
2 | operating system | Research and Development VS | |
3 | Device Model | YX-BQ107 | |
4 | Equipment accuracy | 1mm | |
5 | Power supply and temperature | AC220V; 0~40℃; | |
6 | Product Type | Food packaging bags | |
7 | Detection beat | 800 pieces/minute | |
8 | Technical Support | Remote debugging | |
9 | Culling Type | Incomplete characters, presence or absence of inkjet codes, offset of inkjet codes, repeated codes | |
10 | Equipment size | 550*480*1480mm | |
11 | Equipment standards | IP30 (national standard) | |
12 | Removal method | Air Blow | |
13 | Testing requirements | Incoming material spacing ≥ 2cm |
Unparalleled Engineering Advantages
Non-Disruptive Bolt-On Assembly
No line alterations needed. The structural frame fits effortlessly around standard conveyor side-rails, allowing system deployment in under 2 hours.
Advanced AI OCR / OCV Engine
Optical Character Recognition (OCR) and Character Verification (OCV) software adapt dynamically to font size changes and variable text strings (e.g., dynamic time stamps).
Integrated Rejection Signal Output
Equipped with multi-protocol digital I/O interfaces to directly trigger your downstream pneumatic pushers, blowers, or drop-gate sorting lines.
Industrial Sanitary Stainless Frame
Constructed using heavy-duty, cleanroom-compatible stainless steel, ideal for food, beverage, and pharmaceutical packaging plants.
Why Manufacturers Choose Us
Enhanced Productivity: Minimize human QC checking hours with 24/7 autonomous optical scanning.
Better Quality Control: Inspect 100% of products inline instead of random batch sampling.
Zero Customer Rejections: Prevent expensive product recalls and market regulatory penalties from missing label information.
Maximum Cost Efficiency: Save thousands on implementation fees by avoiding third-party custom mechanical engineering costs.

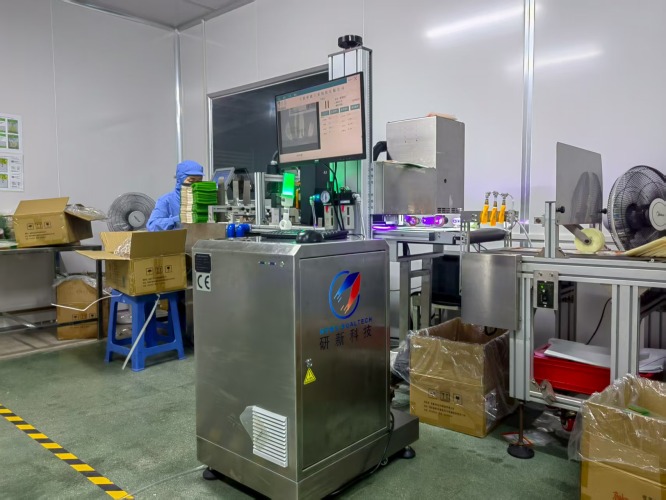

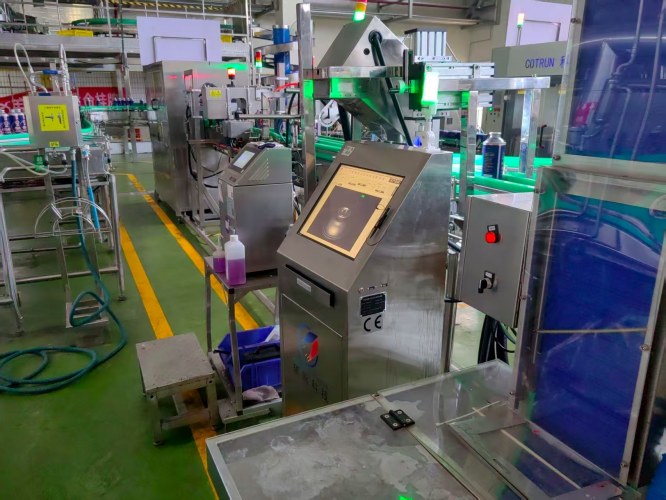

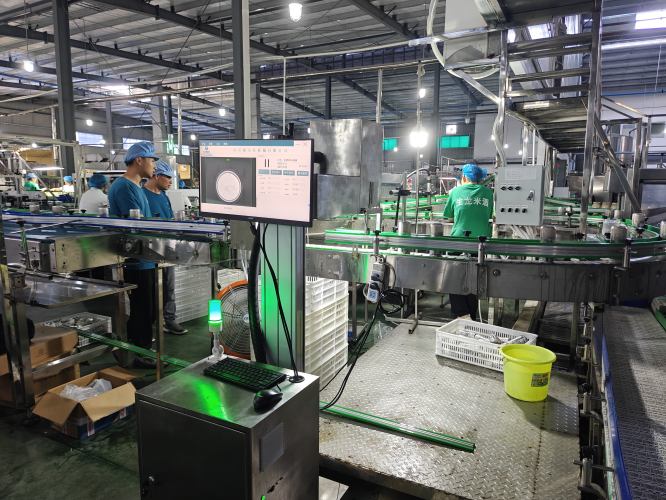

Application
 |  |  |
